XY-200F small water well drill rig for hot sale in Africa
Small water well drill rig features
1. Max. depth-200m,diameter range400-75mm.
2.diesel enginewith electric battery start--for labor saving.

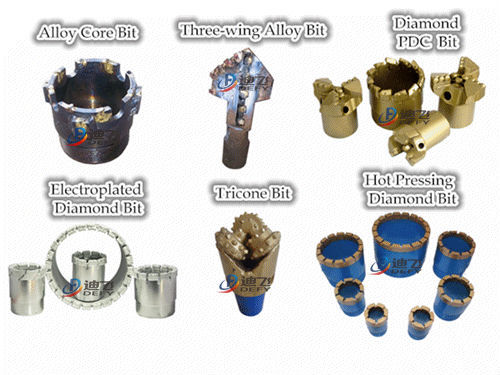

3.Alloy bits--for drilling soil, sand, etc. soft land; diamond
bits--for hardrocks.
4. Hydraulicallyautomaticcontrol system--for the rise and fall of drill tower.
5.BW-160mud pump with large water flushing rate--for stable working.
Specification
Drilling depth | 200m |
Maximum borehole caliber | 400mm |
Minimum borehole caliber | 75mm |
Diameter of Drill pipe | 42, 50, 60mm |
Drilling angle | 90°~75° |
Weight(Not include power) | 1700kg |
Unity machine dimension | 2750*950*1600mm |
Our Services
1. Provide factory cost accessories all year
2. Engineers are available to service machine overseas or free
training in factory
3. Online service 24hours*7 days
4. 12 months quality warranty for main body.
FAQ
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or
others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m,
even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth.
Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you
recommend suitable machine and price. If you have special demands,
please tell us in advance.
