High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler

    Buy cheap High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler from wholesalers

    Buy cheap High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler from wholesalers
    • Buy cheap High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler from wholesalers

    High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler

    Ask Lasest Price
    Certification : BV,SGS certificate
    Model Number : DFQ-100
    Price : USD12,00.00~USD16,500.00
    Delivery Time : within 3 days against full payment
    Payment Terms : 50% T/T in advance as deposit, 50% T/T before delivery
    • Product Details
    • Company Profile

    High Quality 100m DFQ-100 Hydraulic Rotary Pneumatic Drilling rig Machine on Crawler

    Manufacturer of DFQ-100 Pneumatic Drilling

    Machine with Crawler for Sale

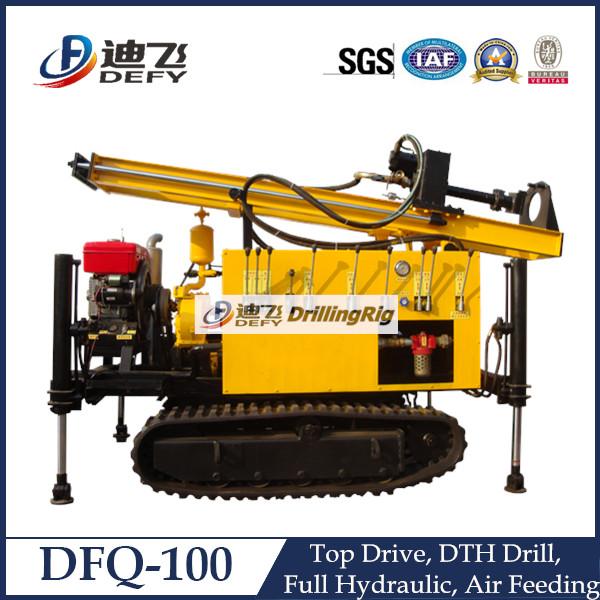

    Hydraulic DFQ-100 drilling rig.jpg

    Brief Details

    Brief Details of Water Well Drilling Rig:

    1. Model No.: DFQ-100

    2. Max. Drilling Depth:100m

    3. Drilling Rod Diameter:Φ60,Φ63.5

    4. Borehole Diameter: 105~~150mm

    5. Warranty: One year guarentee excluding wearing parts

    6. Certifications: BV, SGS Certificate

    7. Applications:Water Well,Irrigation wells,Geological Exploration,Geothermal Heat Project etc.

    Customers' Focus

    First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.

    1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation

    Piling or others?
    2. The Max. depth of drilling you hope to achieve?
    3. The Min. and Max. hole diameter you estimate?
    4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the

    soft and hard layers?
    The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.

    Product Specifications of DFQ-100 Drilling Rig:

    DFQ-100 drilling rig is a light weight, high efficiency and multi-function drilling equipment,

    it adopts rubber crawler, will not damage the roads, self-propelled transitions,convenient and

    quick. It is equipped with BW -160C mud pump, achieve the two kinds of working with

    water or air, stronger applicability. It is widely used for water well drilling,geothermal

    air-conditioning projectand other boreholes, especially applicable to mountain area and rock

    formationwaterengineering.

    Much higher efficient than the traditional rotary drill rigs, creating the considerable economic

    benefitfor users. DFQ-100 drilling machine is able to work efficiently under all kinds of

    geologicalconditions.DFQ series penumatic well drilling rig is verypopular in market from

    Kenya, Nigeria, Ethopia, Mombasa, Uganda, South Africa, Zimbabwe, Chile, Peru, Malaysia, Dominica, India, etc.

    DFQ-100 drilling rig work site.jpg

    1. suitable land condition is mainlyvery hard rock, like marble, granite, limestone.
    2. Equipped with specialDTH hammer and DTH bit, efficient inrocky area.
    3. Power isdiesel engine, suitable outside working.
    4. Need use withair compressor
    5.Higher efficiency,compared with traditional rigs. Drilling speed--20m/h

    Parameters of Water well Drilling Rig DFQ-100

    No.

    Item

    Parameter

    1

    Drilling caliber

    Φ105-150mm

    2

    Max. drilling depth

    100m

    3

    Diameter of drill pipe

    Φ60,Φ63.5

    4

    Unit Length of drill pipe

    1500mm

    5

    Work pressure

    1.05-2.0 MPa

    6

    Gas consumption

    15~18 m³/min

    7

    Impacter

    DHD340350

    8

    Impacting frequency

    1200-1500Hz

    9

    Apply to rock hardness

    f=6-12

    10

    Power

    24Kw/2300rpm

    11

    Grade ability

    25°

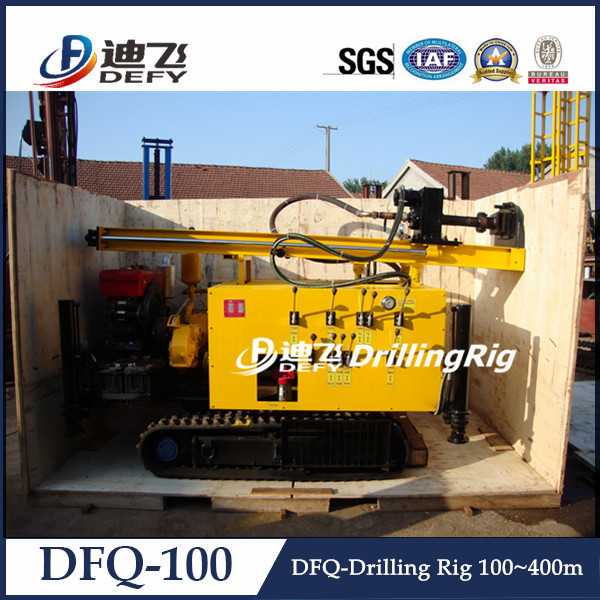

    Package of Water well Drilling Rig DFQ-100

    To protect drilling rigs during sea transportation, we give them proper packing.

    Main machines: In wooden case

    Spare parts: Wooden case or plastic woven bag

    DFQ-100 drilling rig shippment.jpg

    Company Info. and Service

    We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.

    Defy company pic.jpg

    Drilling Rig Manufacturer DERY Service

    1.Professional techinical support pre-sale, sale and after-sale .

    2.Your problems can get feedback in 8 hours and soloved in 24 hours.

    3.Machine can be customized as per your requirement.

    Defy Company info.jpg

    Contact details

    Please donot hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.


    Please contact Andrew for more details and best offer

    Phone/WhatsApp: 0086-18681448031

    Email: andrew(@)zzdefy.cn

    Skype: defy-drillingrig(@)hotmail.com

    Wedsite: www.zzdefydrillrig.com

    Facebook: www.facebook.com/cndrillingrigs
