Brief Details of Water Well Drilling Rig:

1. Model No.: XY-600C

2. Max. Drilling Depth:600m

3. Drilling Rod Diameter: Φ42,Φ50,Φ60,Φ76

4. Borehole Diameter: 75~~500mm

5. Warranty: One year guarentee excluding wearing parts

6. Certifications: BV, SGS Certificate

7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.

First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.

1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation

Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the

soft and hard layers?
The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.

Product Specifications of XY-600C Drilling Rig:

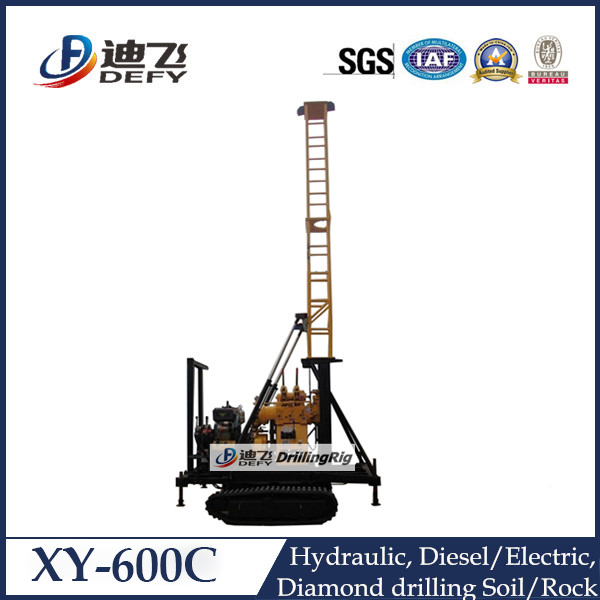

XY-600C portable water well drilling machineis a portable hydraulic drilling rig machine, adopting integrated tower, hydraulic legs, mud drilling, rotating method, mobile base, hydraulic drilling, etc. It is very widely used for water well, geological exploration, mining exploration, geothermal well, irrigation well, bridge conservancy, etc. Very popular in market from Kenya, Nigeria, Ethopia, Mombasa, Uganda, South Africa, Zimbabwe, Chile,Malaysia, Dominica,etc.

1. Power supply:

It can be powered by diesel engine or electric motor as options; Diesel engine is started by electric battery.

2. Mobile base:

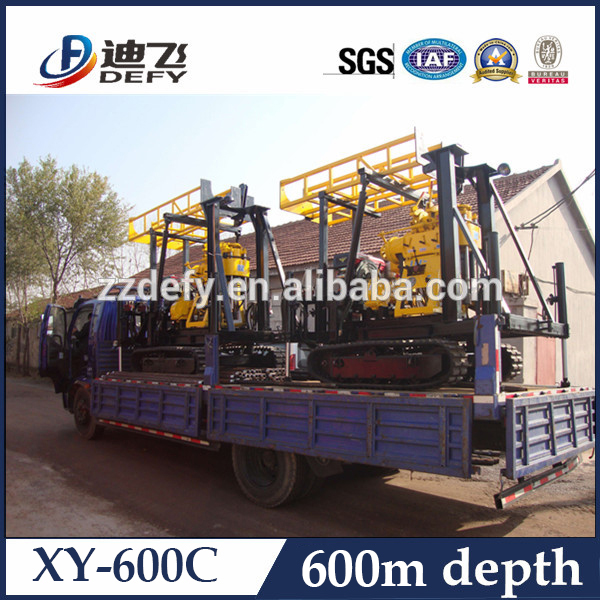

It can be mounted on trailer, crawler or truck for easy move and different drilling environment;

3. Automobile transmission assembly:

With 10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratumdrilling requirements.

4. Mud pump

Designed wih BW-200 or BW-250 mud pump, XY-600C is with much larger water flushing rate, with better scraps cleaning effects.

5. For different stratum

Soil, sand, gravel, rocks. XY-600C can work with alloy bit for soil and sand, PDC bit for gravel,

and diamond bit for rocks and hard rocks.

6. Integrated drill tower

Hydraulically control the rise and fall, no need to install drill tower manually.

Parameters of Water well Drilling Rig XY-600C

Company Info. and Service

We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.
