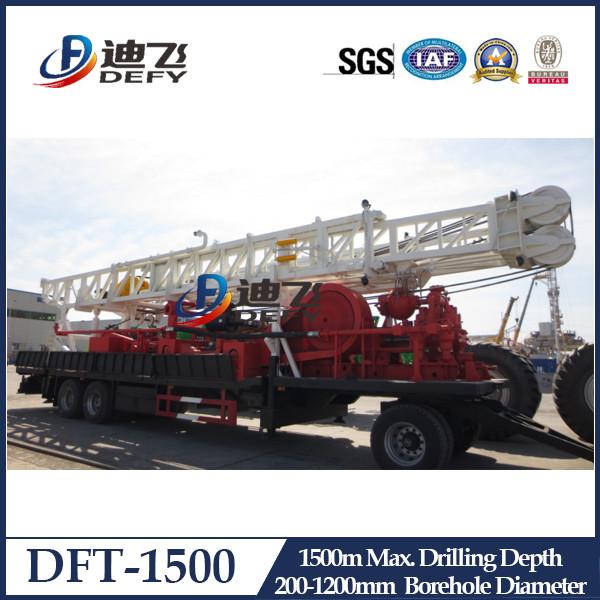

DFT-1500 Trailer Mounted Water Well Drilling Rig
1.This drilling rig is one type of normal-circulation rotator. The
chassis of full-trailers is
applied in this drilling rig which is being equipped with all-steel meridian
tires with good
off-road performance.
2.Driven by independent diesel engine, this drilling rig is powerful
and full of great force.
3.This drilling rig is equipped with two hoisters, so three-speed
(fast-middle-slow) lifting and lowering can be achieved to improve
working efficiency of well drilling by big lifting force.
4.This drilling rig is equipped with four hydraulic support legs and
two mechanical support legs. Hydraulic mechanical double-locking can be realized
by means of oil-cylinder piston rod of
each hydraulic support leg. In this way, the chassis will not lose stability even if the
oil-cylinder leaks.
5.The drill tower applies telescopic structure of internal and
external towers whose positioning
can be finished through hydraulic cylinder.
6.This drilling rig is fitted with a 50KW generator which is convenient for customers to perform
drilling operations.
Parameters of DFT-1500:
Parameter of DFT-1500 |
Rotary table | Inner hole diameter of rotary table 660mm |
drilling depth(m) | 1500m | 1200m | 1000m |
fitted drilling rod(mm) | φ89 | φ114 | φ127 |
Rotating speed of drilling (forward&reverse) | 153,89,55,39 |
Max torque of rotary table | 25KN.M |
Winch | main winch | Tensile force of single rope of main winch:90kN |
Speed of single rope of main winch: 0.84,1.90,3.3m/s |
Steel rope diameter D-6×19 φ28mm |
auxiliary winch | Speed of single rope of vice winch 50kN |
Steel rope diameter D-6×19 φ20mm |
Engine | type | NTA855-C360 |
Rated speed(r/min) | 2100 |
Power (kw) | 264 |
Mast | Effective height(m) | 16.5 |
Rated undertaking load of drill tower(t) | 60 |
Kelly(mm) | 108×108×12500 |
Hook | Carrying capacity(T) | 60 |
Piston pump | type | BW1200/7 |
Pressure(MPa) | 7.0 |
Theoretically flow(L/min) | 1200 |
Piston stroke(mm) | 270 |
Piston diameter(mm) | 160 |
Transportation size(mm) | 15500×2800×4700 |
Work size(mm) | 11445×3800×19500 |
Speed of travel | 20Km/h |
Please contact Andrew at email andrew(@)zzdefy.cn for more details
and best offer.The best price will be made for you soon once we get the answers to
the following questions:
1. How deep do you need to drill, 100m, 200m, 300m, 400m, 600m or
other depth?
2. What is the size of borehole you need, 75mm, 105mm, 127mm,
203mm, 254mm or other size?
3. What kind of geological condition the rig work on, soil, hard
soil, rock, hard rock or other?
